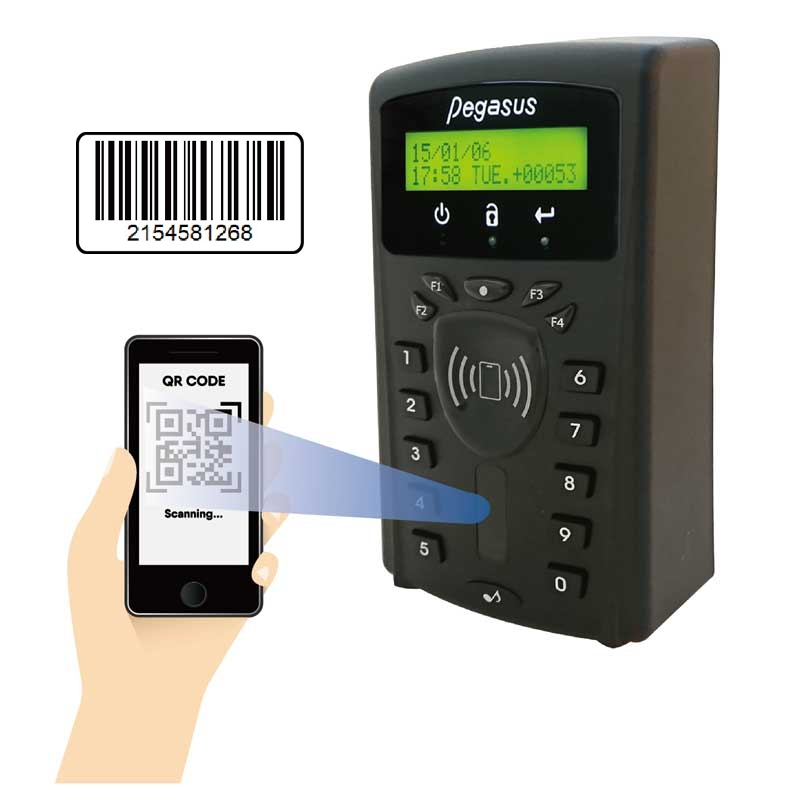

Access control with QR code and RFID reader
Product code: ADGANG-QR-RFID
Main features for access control application:
•System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
•The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
•Excellent multiple operation modes :(1) Card / QR code only (2) Card / QR code+ PIN (3)Door PIN only (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
•All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
•Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
•Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
•With complete door release, held monitoring and intruded alarm period and error trials.
•Supports 8/24/48/64/96 floors lift access control.
•Full APB (anti-passback), time zone.
•Could dump all personal map in system by single PC or manual command.
ADGANG-QR-RFID
1 Item
Data sheet
- Weight
- 600g
- Forsyning
- 12VDC
- Driftstemperatur
- -20℃ to 70℃
- Interface
- RS-485 & TCP/IP
- Dimensioner
- 174 x 100 x 43mm
- Læser
- 13.56MHz Mifare RFID and QR code
13.56MHz Mifare RFID and QR code
Free SDK available
Power supply: DC 12V
Operating temperature: -20℃ ~ 70℃
Possible in 8 digits ID for time attendance recording.
High capacity with 8 digits card number.
Programmable Password 4 digits PIN for each person.
16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time events counter.
