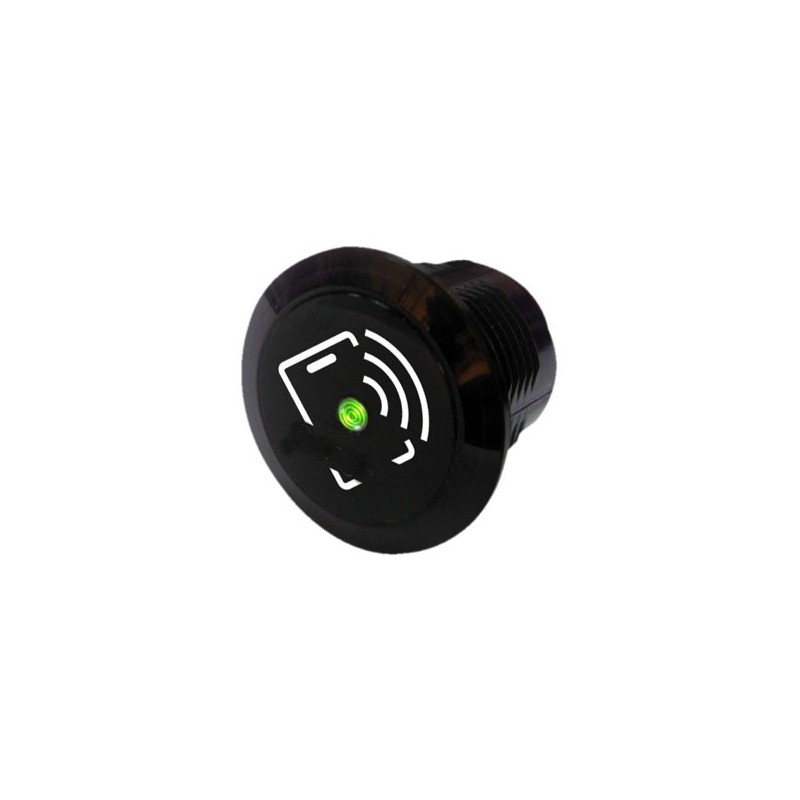

Mini RFID Mifare reader 13.56MHz with memory. Stand-alone access control with relay output. 12vdc.
Product code: ADGANG-RUND-MR-RFID
Compact and smart RFID access control for door, elevator, cabinets, drawers, locks and the like. Built-in antenna, relay and variable timer that can be mounted as an independent contact controller with the possibilities for a maximum of 1,000 RFID card access with variable door release time adjusted by potentiometer. It can set a specific card as master card, clear single card as well as delete all cards at Master card programming.
ADGANG-RUND-MR-RFID
1 Item
Data sheet
- Compositions
- Polycarbonate
- Driftstemperatur
- -10 - 70 grader
- IP-Tæthed
- IP-54
- Dimensioner
- diameter: 39.7 mm, længde: 30.2
Small access control for Mifare RFID, stand-alone
40 mm in diameter
Thread is 28mm
30.2 mm long
can register up to 1000 Mifare Tag / Card
Relay output COM, NC (END CONTACT)
Adjustable Hold Timer - (Pot Meter) 0.5 - 100 sec.
Users (Tag) Created with "Master card"
Users (Tag) Remove with "Master card"
No software, no PC or terminal
3 different LED colors
Programming for programming
IP54 Front
Supply voltage: 12VDC / 70mA
